Improving perfection

The New ESSEL ET12000

This top-notch towing platform represents a true engineering masterpiece. It stands out with the market's lowest transport height of 1200 mm and can be equipped with up to five Sepson winches and a powerful hydraulic crane located behind the cabin.

Discover the new masterpiece among towing platforms.

ET12000

The masterpiece among towing platforms

Premium engineering and manufacture.

A class of its own.

Developed and manufactured with the intention of being the unrivaled best heavy-duty towing platform in its class, the ESSEL ET12000 boasts several exceptional features. These include the lowest transportation height and the strongest underlift in its class, powerful hydraulic crane with long reach, deluxe stainless steel body panels, up to five Sepson winches, and numerous wise and practical functions.

1200 mm - transportation height of the platform

13 ton - lifting power of the underlift when retracted

9 ton - lifting power of the underlift when extended

This is the new ESSEL ET12000, a class of its own.

Wise and practical.

All essentials in one place.

All important connections are concentrated in one place. Located in the left rear part of the vehicle, you get immediate access to the following outlets:

  • two hose-type pneumatic winches

  • electric socket for towed vehicle - trailer

  • ABS / EBS

  • DUOMATIC coupling - pneumatic connection of the braking system

  • camera with a rear view of the underlift

  • additional hydraulic outlets using hydraulic quick connections

Explore ET12000 features in more detail

Hydraulic System

We use a high quality HAWE hydraulic distributor which has up to 8 + 8 sections. Our hydraulic system has 3 circuits for precise control of all winches, platform and hydraulic crane .

Proportional Remote Control

Control all of the main working functions of the device via proportional Hetronic remote control with precise control of the equipment, winches platform and crane.

Towing bar placement

Practical placement of the towing bar in the front part of the platform so that it is always within reach.

ESSEL Towing Tools Set

Towing tools set is compatible with all truck manufacturers and helps you reach high efficiency by towing crashed or broken trucks. They are produced on ultra precise CNC milling machines from high strength steel with a galvanized finish for a long life and durability.

Rear Towing Bracket

Rear towing bracket in working position for securing the towing bar and towing vehicles.

Extra Hanging Hooks

Additional hanging hooks for storing tying tools are located on the upper part of the body panels. They are manufactured from stainless steel.

Heating and Square Plates

Heated body panels maximize your comfort during the cold winter season. The square plates hanging system can be used to hang small tools and helps to optimize the storage space of body panels.

Central Lock System

Body panels equipped with a central locking system maximize your comfort. Central lock system can be controlled from cabin or via remote control.

Hydraulic tank

The specially designed hydraulic tank supplies all hydraulic systems of the vehicle, ensuring their smooth operation.

Air Drums

Two air circuits with independent air pressure bring air to a distance of up to 15 m from the device and inflate the wheels of the broken car or attach pneumatic tools.

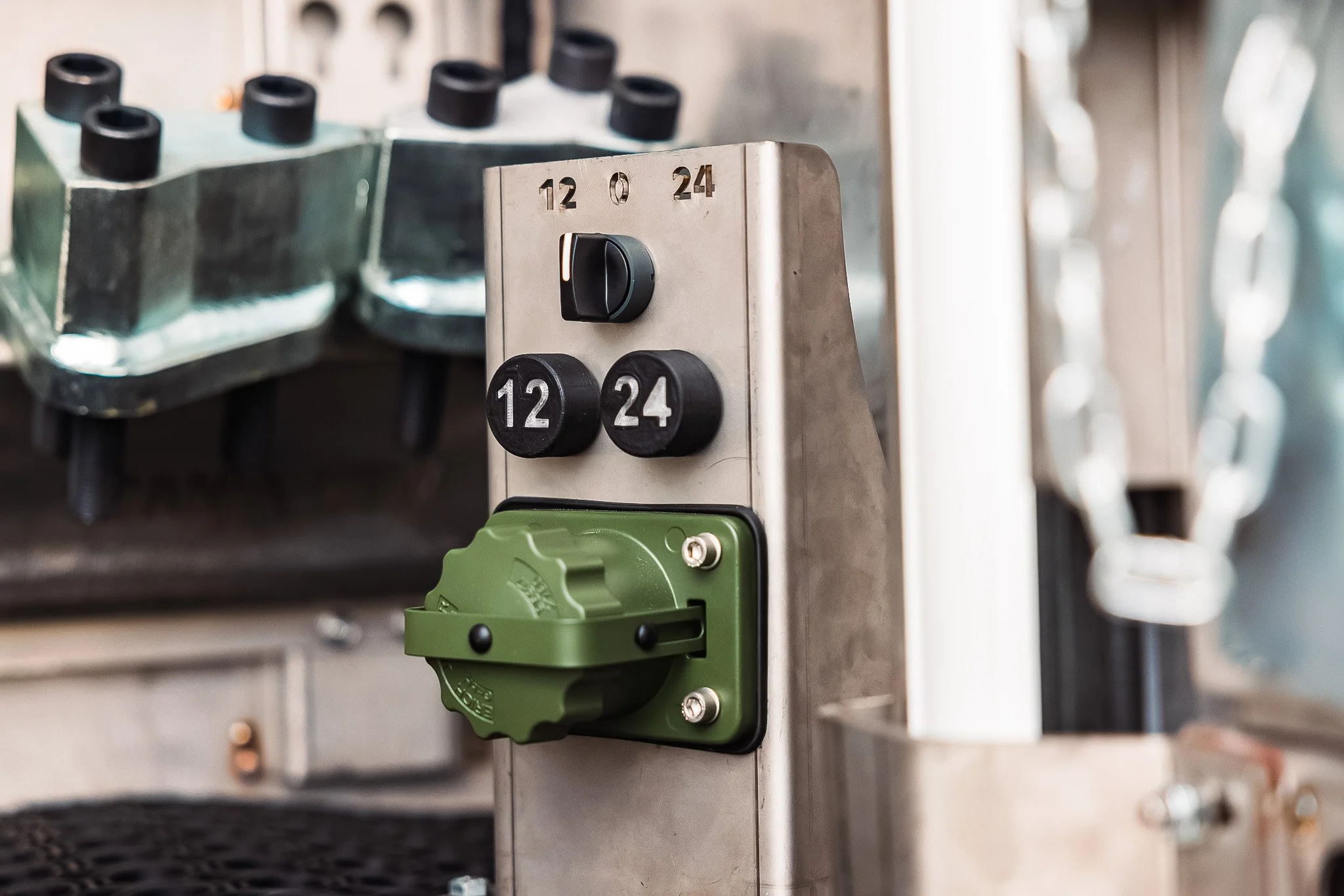

Jump Start

12/24 V electronic jump start system with electronic safety protection of batteries against short circuits.

Storage Space

Body panels are designed to maximize storage space for all essential towing accessories.

Extendable ramps

The hydraulically telescopic extendable loading ramps ensure an exceptionally favorable loading angle of under 7 degrees, allowing for the loading of vehicles with lower ground clearance.

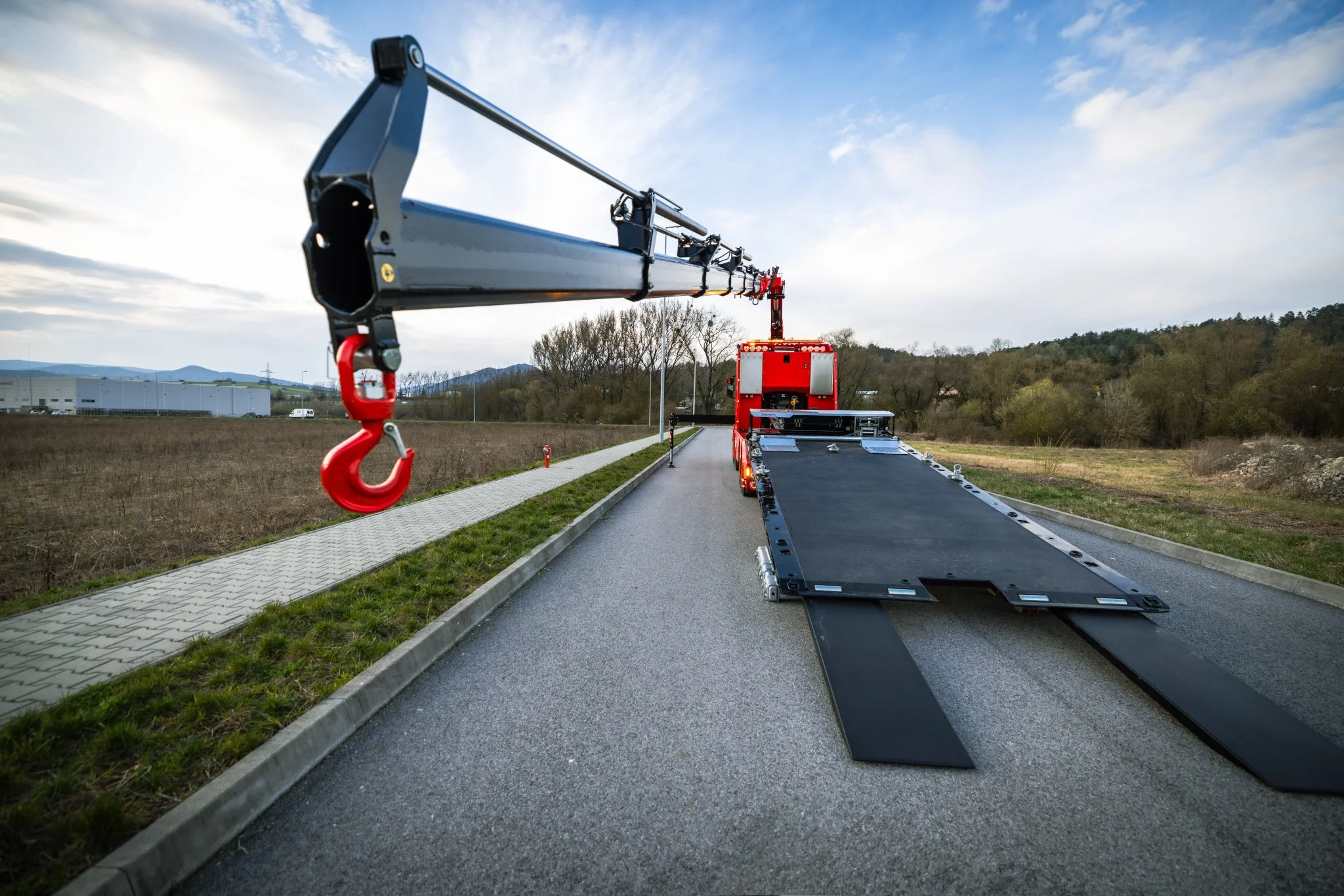

Hydraulic crane with exceptional stability

With its robust design, the entire vehicle is characterized by exceptionally high stability, enabling the full 360-degree rotation of the hydraulic arm for effective operation.

Chain lift

Used for storing chains and other tying tools, the storage space located in the front left compartment maximizes its utilization. The chain lift is smoothly hydraulically operated with the remote control placed in the front door, and it is manufactured from stainless steel.
