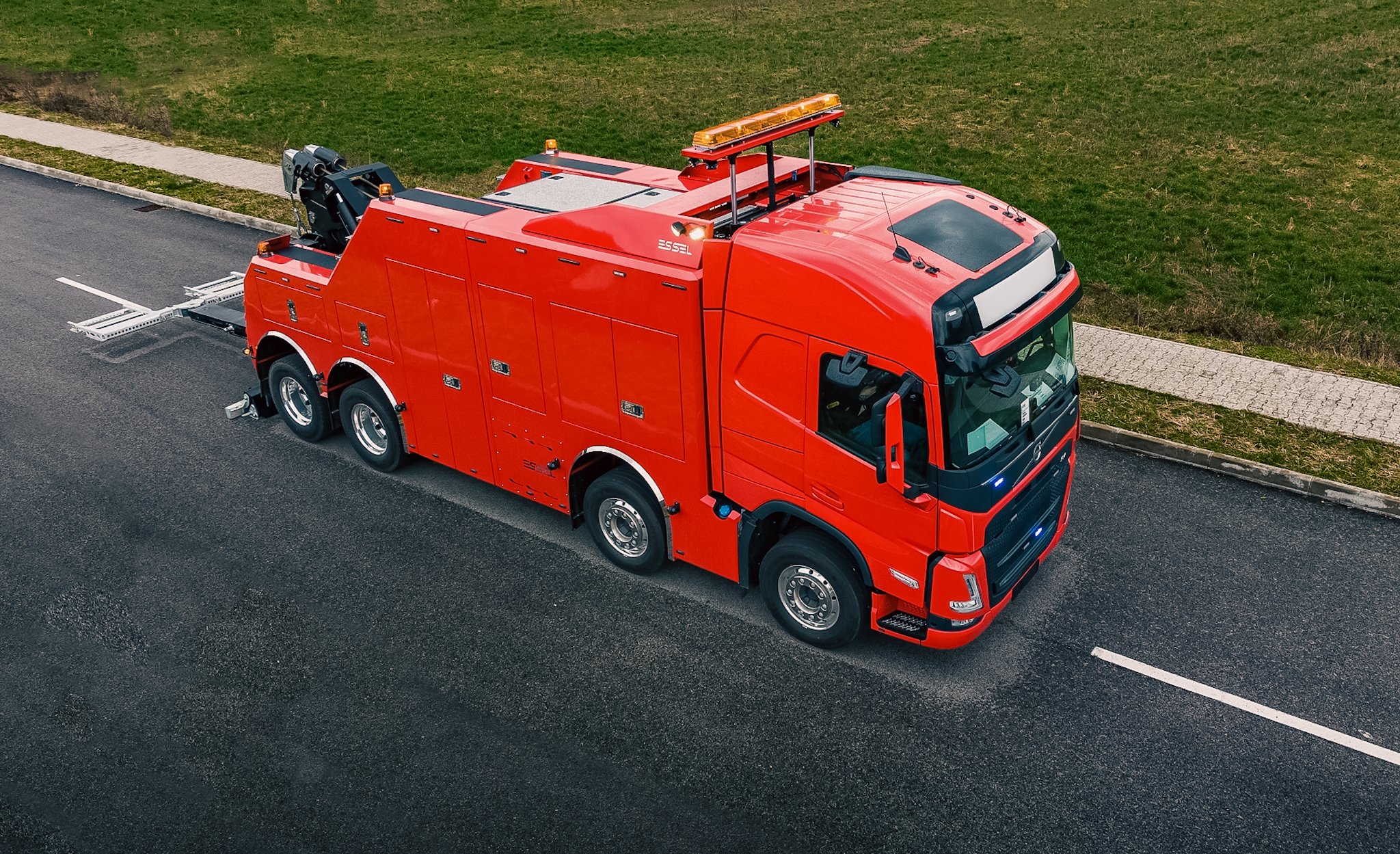

ESSEL Recovery

MODEL ER4120

A special type of superstructure with the possibility of mounting on various types of chassis, used for recovery of crashed or broken vehicles of heavy weight.

Designed and manufactured with a sense for detail. You can rely on it.

ESSEL Recovery_Model ER4120_062, Recovery Equipment, Essel Premium Superstructures

25t

Maximum lifting capacity of main crane jib

20t

Maximum loading capacity of main boom with underlift

24t

Towing power of each winch

Standard equipment

Chassis

  • axel 4

  • wheel base approx. 5,6m

  • min front axle capacity 9t

  • equipped with power take off (PTO) engine / gear

Subframe

  • made of high tensile steel

  • sandblasted, prime and top coated for maximum resistance against corrosion

  • fixed to the truck frame acc. to manufacturer´s specification

ER4120 kit retracted, Recovery Equipment, Essel Premium Superstructures

Support legs

  • back legs in A shape

  • back angle 15°

  • side angle 15°

  • max extension 800mm

  • made of high tensile steel in rectangular sections

  • independently and hydraulically operated

  • toothed spades for maximum grip

Crane boom

  • max. lifting capacity of main crane jib - retracted 25t, extended 10t

  • dimension of extended main crane jib - length 5,2m,

  • height approx. 7,8m

  • max. lifting angle 40°

Under-lift

  • made of high tensile steel plates

  • fitted with extendable hydraulically operated underlift

  • underlift supplied with tilting arm with angle +-12°

  • underlift with 2 telescopic extensions 2x1150mm

  • manual both-sided aretation of telescopic extensions in different positions

  • maximal loading capacity of main boom with underlift - retracted on pin 20t, extended 8t

ER4120 main boom extended, Recovery Equipment, Essel Premium Superstructures

Winches

  • Sepson Sepdurance H240 2pcs

  • max. pulling capacity 24t

  • inner layer 24t

  • outer layer 15,5t

  • rope length 60m

  • rope diameter 24mm

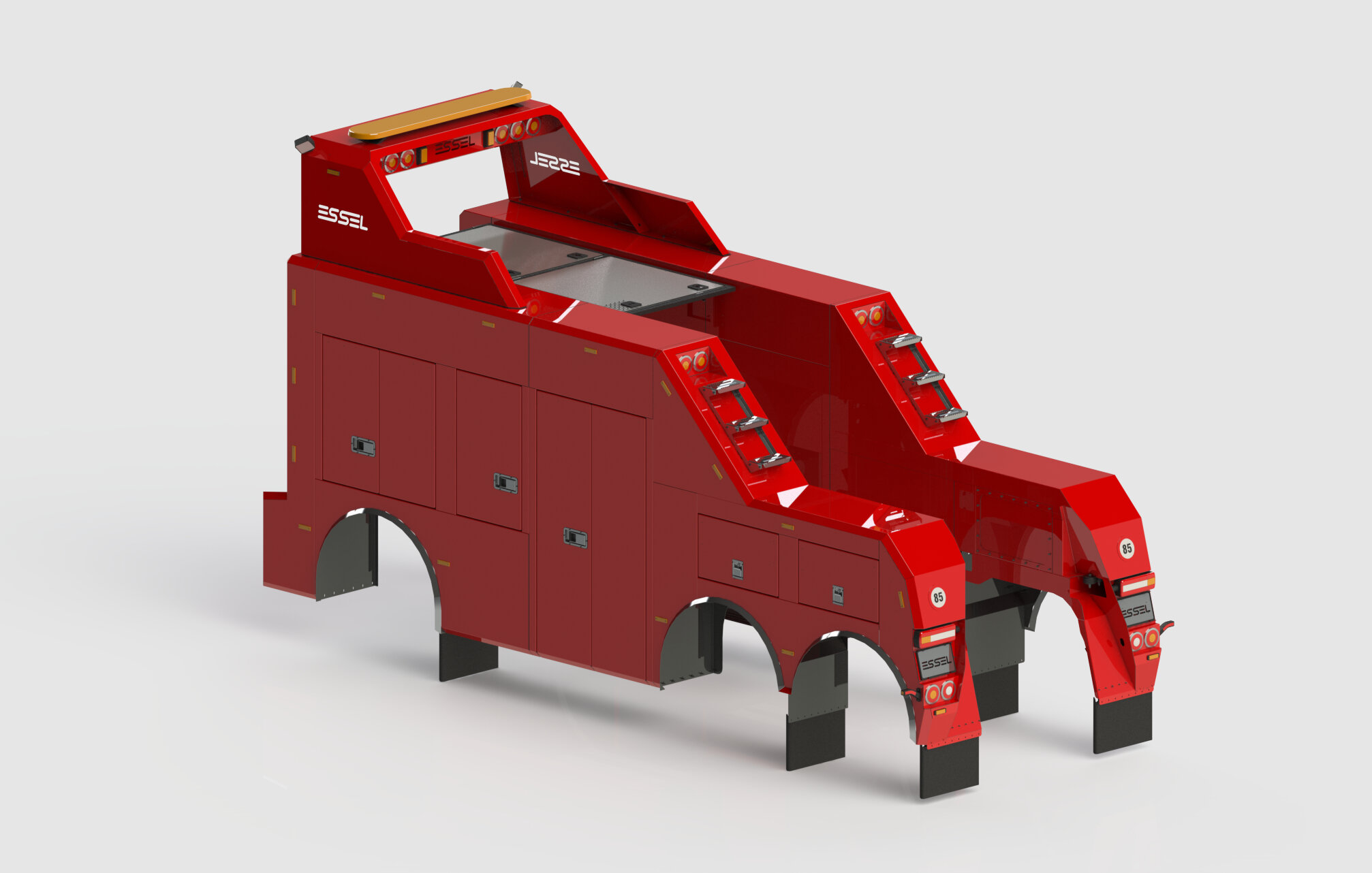

Body panels

  • made of stainless steel thickness 3mm

  • hanging brackets

  • rubber mats thickness 23mm

  • anti-spray mudflaps (beside G chassis)

  • lights turn on automatic by PTO on

  • compartments for hydraulic distributor

  • compartments with lockable doors with key, with rubber strip sealing

  • inside hinges made of stainless steel thickness 5mm

  • adjustable stopper for angle of open doors

  • easy access to fuel tank and Ad Blue

ER4120 body panels, Recovery Equipment, Essel Premium Superstructures

Hydraulic system

  • oil tank 120 l

  • hydraulic pump with connection to PTO

  • working pressure in hydraulic system 20,5 MPa

  • oil flow 50-80l/min

  • proportional distributor - min. 9 sections

  • manual central greasing

  • hydraulic oil cooler

Electric system

  • tailor made electrical box - ESSELTRONIC

  • remote control

  • working lights on winch, on flyer, by support legs

  • orange lights on sides of body panels

  • flashing lights in front 4pcs

  • flashing lights on flyer 2pcs

  • light bar on the flyer

  • combined auto lights on flyer

  • control of lights from cabin, from the remote control, from the distributor

Optional equipment

Mechanics

Hydraulics

  • Air drums

Body panels

  • Central lock system

  • Heating

  • Inner painting

Electricity

  • Extra rotating working lights

  • Extra working lights

  • Radio control with 8 proportional channels

  • Camera on flyer and on underlift

  • Light bar on a cabin

  • Telescopic light bar

  • Front flashing lights 6pcs

Get in touch

Are you interested in ordering, or do you simply need additional information? Please feel free to contact us. Just fill out the form and we will promptly get back to you.

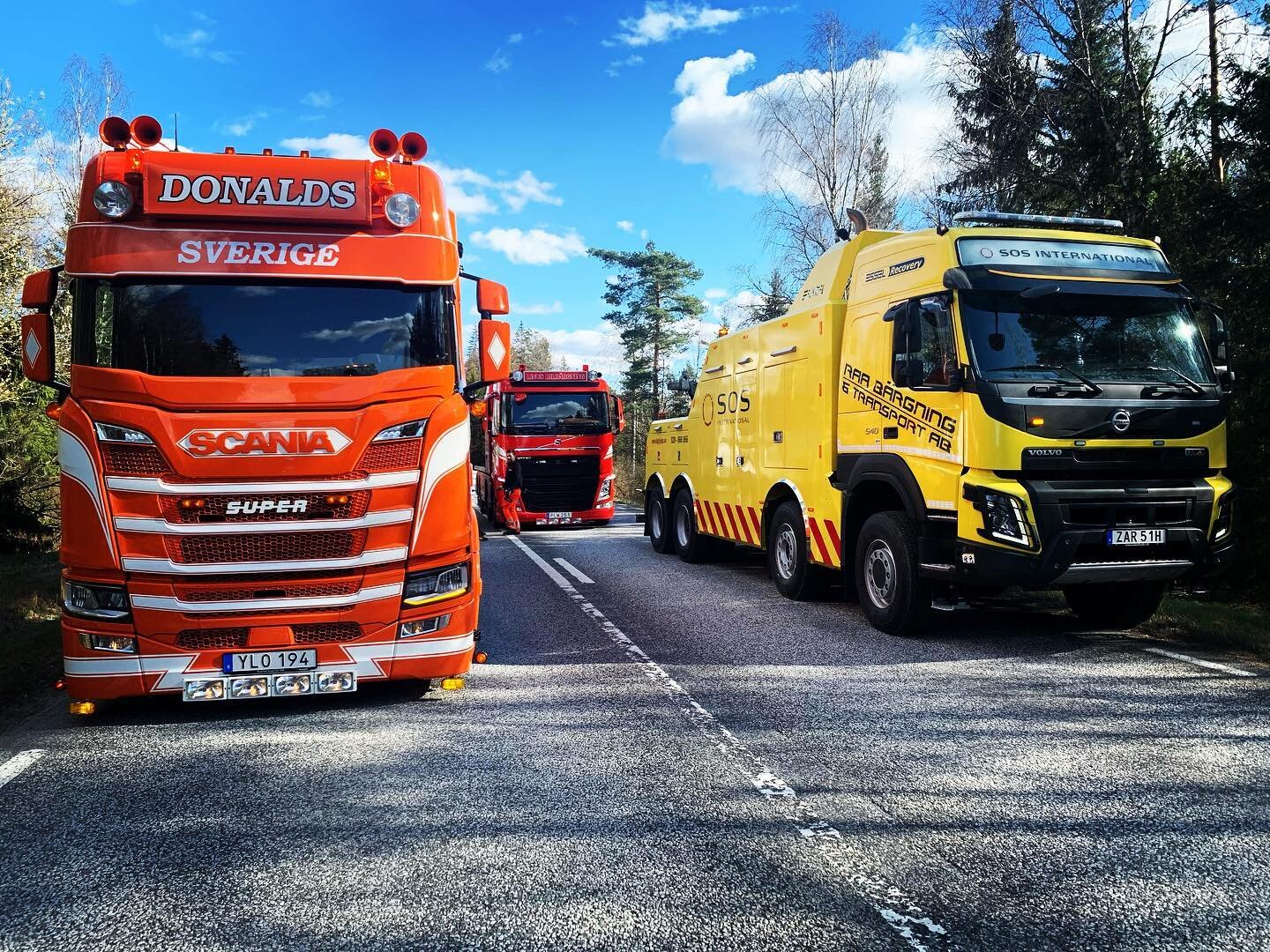

Gallery
