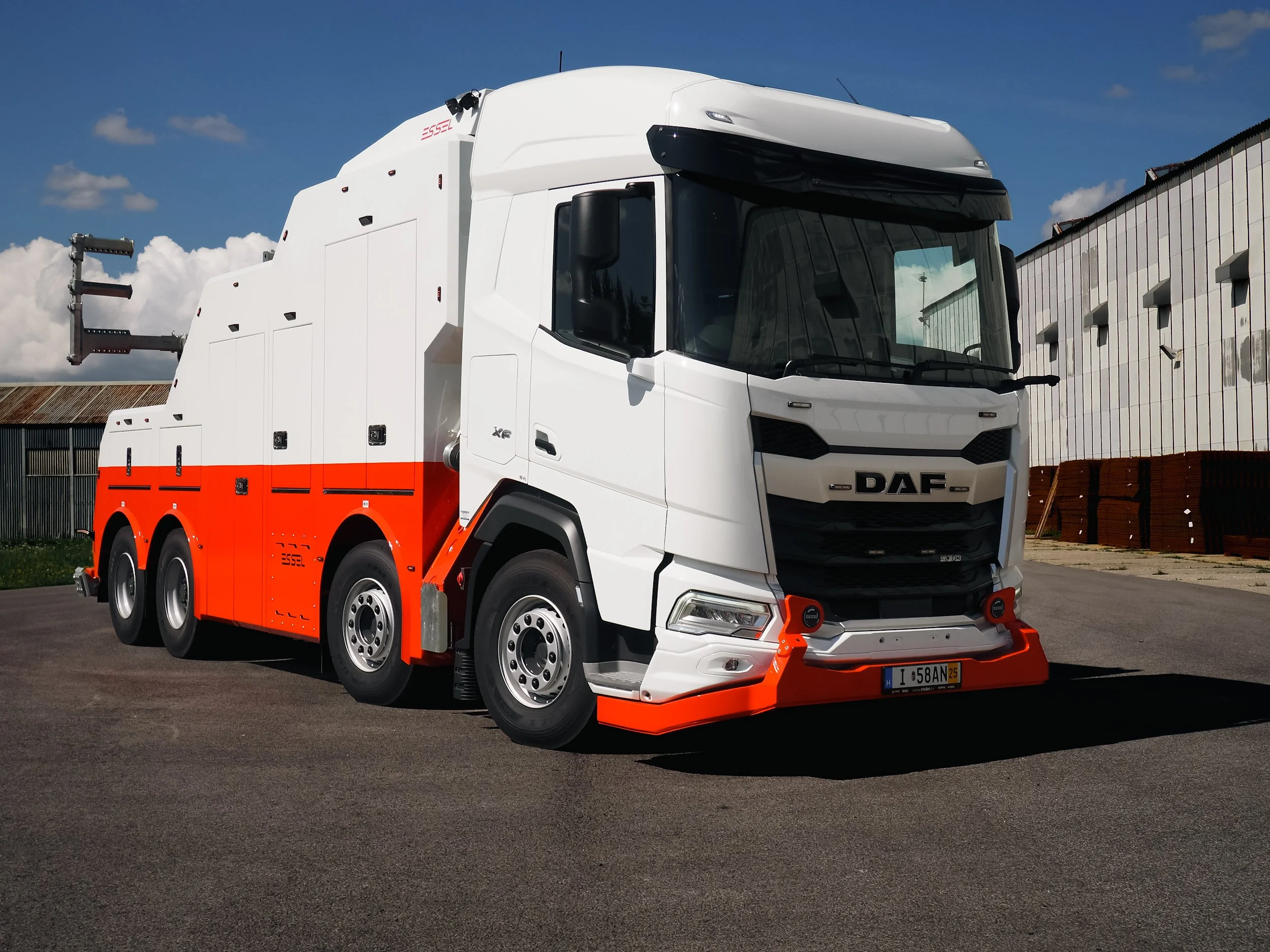

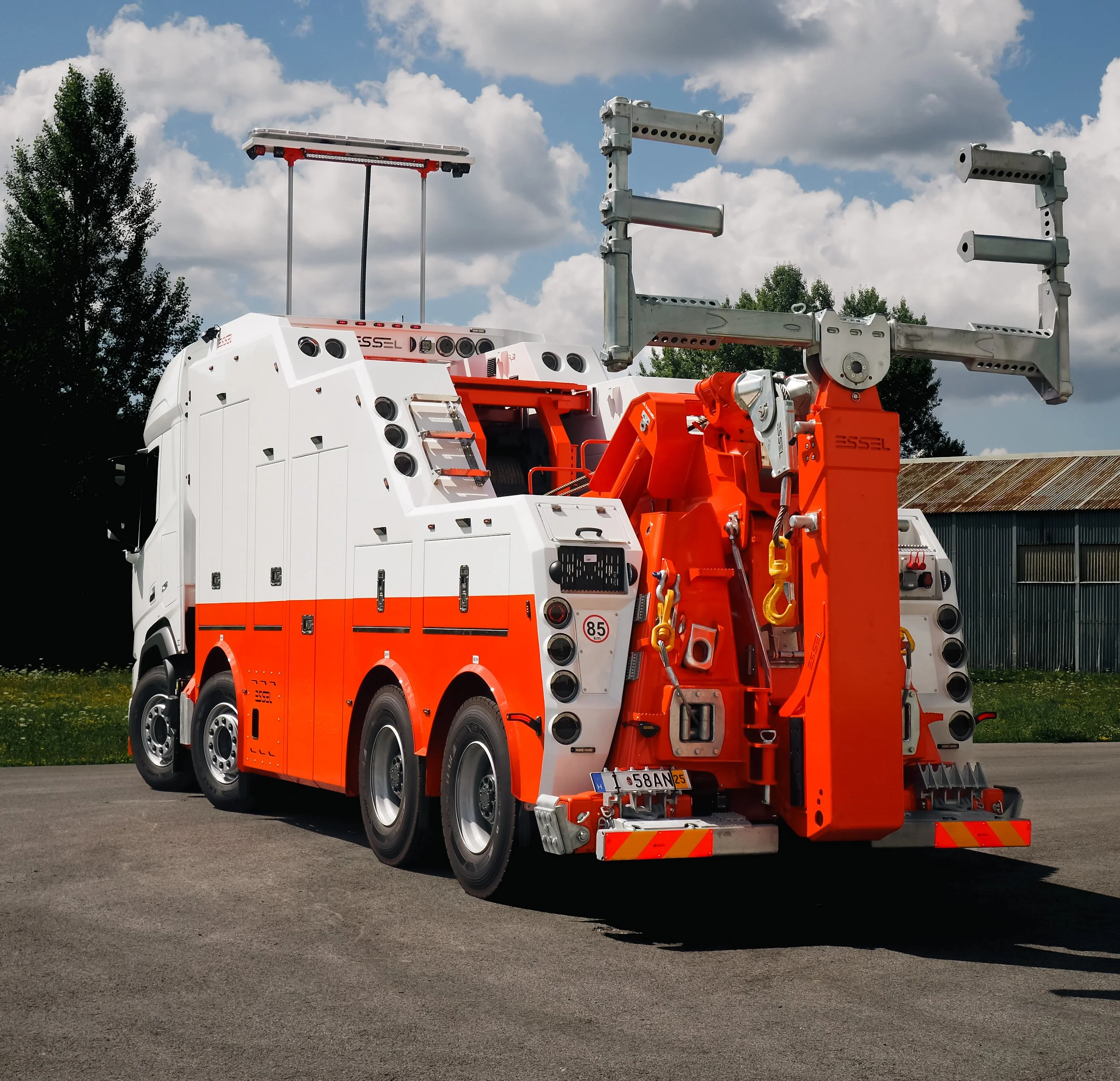

T-REX
Represents ESSEL´s flagship heavy-duty recovery vehicle with a total combined pulling force of 80 tons.
Fully equipped with 5 winches, front support legs, hydraulic telescopic flyer, heated body panels with central lock system - all built into a brand new design.
An unrivalled merge of form and function.
T-REX
“T” for towing
”REX” for “King” in Latin
This brand new model in ESSEL recovery portfolio, named after the strongest of the dinosaurs, represents a balanced link between the development of the past years and customer´s requirements. All that combined in a truly exceptional and powerful machine.
Discover the new king of towing.
80 t
Combined pulling force of 5 Sepson winches
25 t
Maximum lifting capacity of main crane jib
20 t
Maximum loading capacity of main boom with underlift
5 WINCHES
MASSIVE POWER
T-REX has 5 Sepson winches with a total pulling force of 80 ton. Two 24 ton winches are mounted on the main crane jib.
Another two 12 ton winches are mounted on a support frame and have lateral rope routing close to the vehicle chassis with optimized rope guidance for trouble-free laying of the rope on the winch drum. Ropes exit in the rear part of the vehicle, optimized for lower pulling at a small angle.
Another 8 ton winch is on the front support legs and can be used for bilateral pulling.
ER4120 KIT
TIME - PROVEN SUPERSTRUCTURE
T-REX is equipped with the ER4120 superstructure, made of high strength steel and validated by many satisfied customers.
ER4120 comprises a crane boom with a maximum lifting capacity of 25 t and a length of 5,2 m. Under-lift has two telescopic extensions (2x1150 mm) and a maximum loading capacity of 20t.

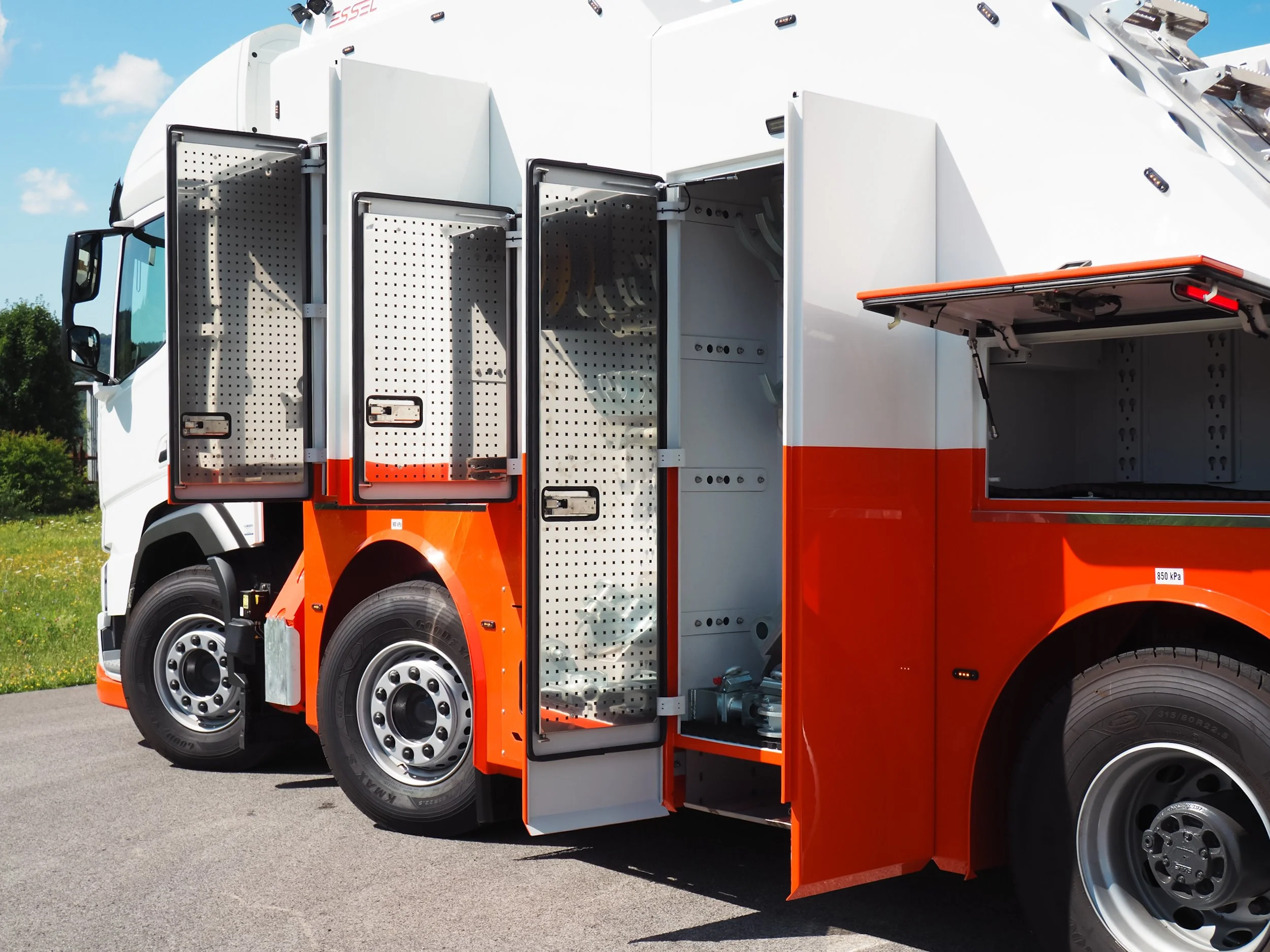

BODY PANELS
DESIGN MATTERS
T-REX has newly optimized the design of body panels. They are manufactured from 3mm of stainless steel and have beautifully embedded lights.
Optimization of the body panels and the distribution of the elements located in them was designed with the intention of maximizing free storage space for storing the user’s accessories.
Exceptionally equipped

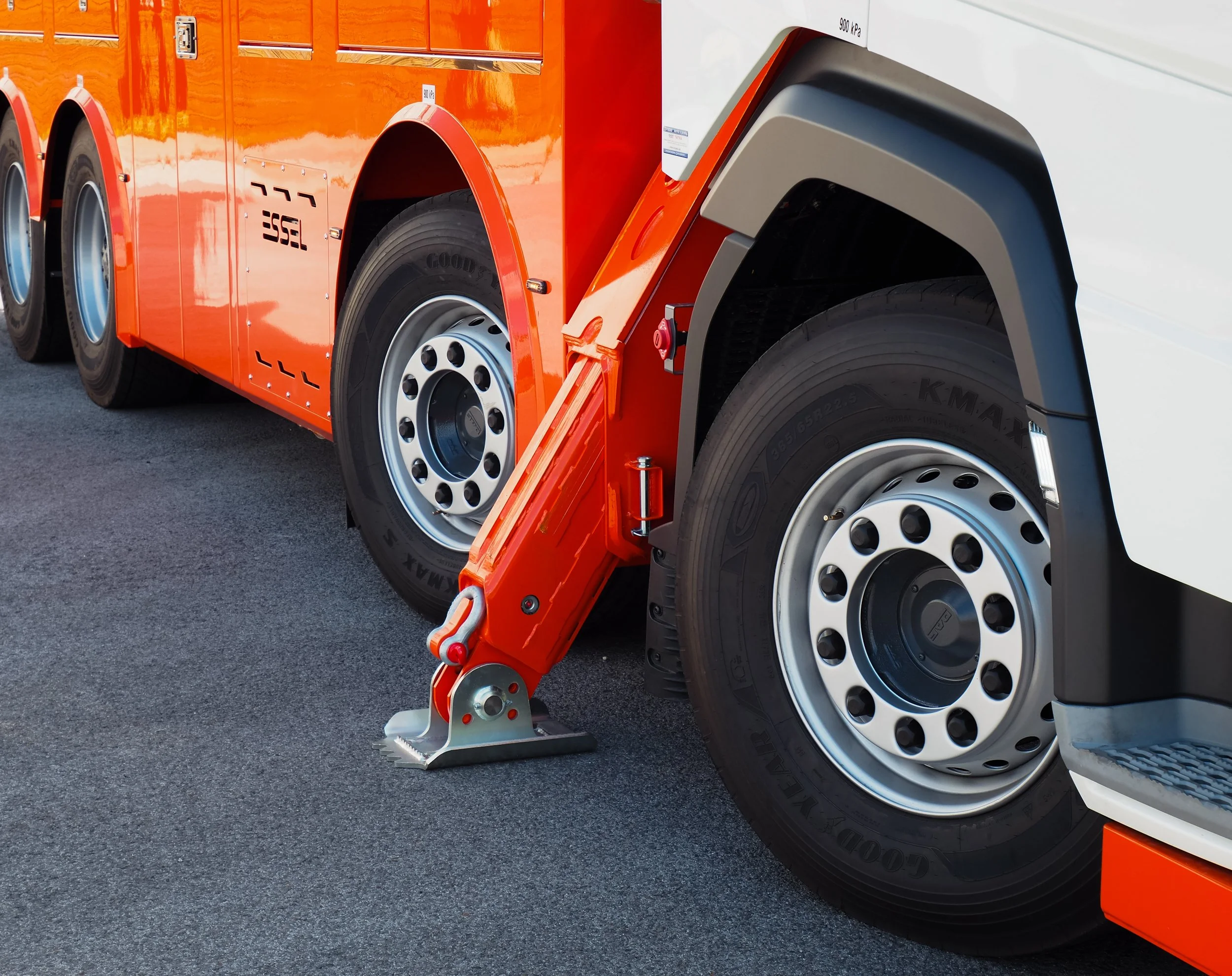

T-REX is equipped with front support legs FSL-36 which represent a truly unique solution. They are independently operated by a proportional hydraulic distributor and have one 8t Sepson winch for bilateral pulling.
Manually extendable rear support legs ensure high stability of the vehicle during operation.
Developed with the intention of simplifying your tow job.
Explore T-REX features in more detail
Hydraulic System
We use a high quality HAWE hydraulic distributor which has 10 + 3 sections. Our hydraulic system has 3 circuits for precise control of all winches and front support legs. It is prepared for the possibility of expansion and the addition of 3 more sections.
Proportional Remote Control
Control all of the main working functions of the device via proportional Hetronic remote control with precise control of the equipment, winches and front support legs without the need to change radio control modes.
Hydraulic Telescopic Flyer
Illuminates the current work scene and ensures perfect visibility of the vehicle even during the darkest night. Safety first! Flyer is controlled by remote control or from the cabin even during the ride.

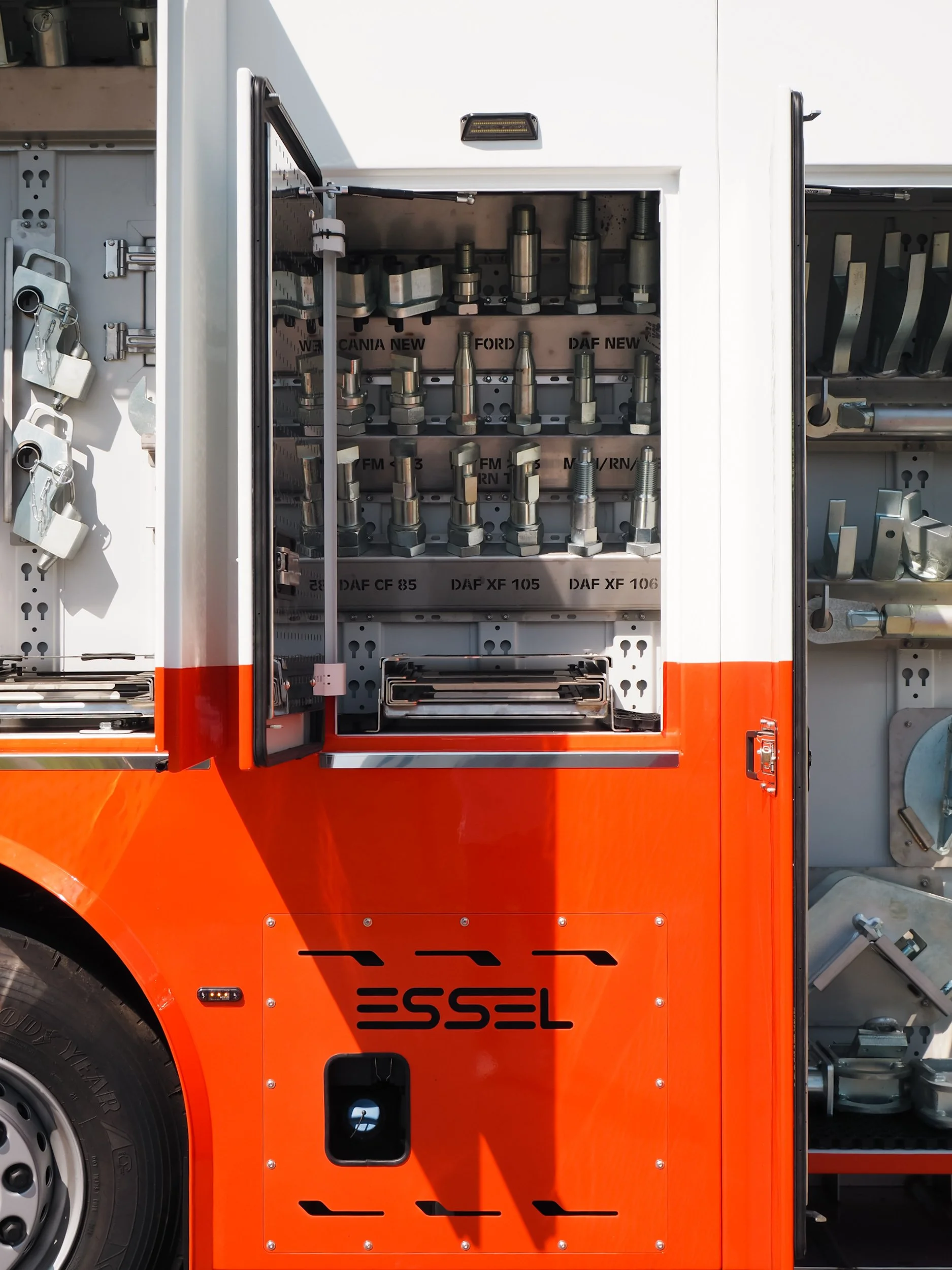

ESSEL Towing Tools Set
Towing tools set is compatible with all truck manufacturers and helps you reach high efficiency by towing crashed or broken trucks. They are produced on ultra precise CNC milling machines from high strength steel with a galvanized finish for a long life and durability.
Easy Access to the Fuel Tank
Body panels equipped in the front part with retractable steps on both sides of the vehicle for easy access to the elevated parts of the storage space of the body panels and to the fuel tank.
Rear Location of Outlets
New rear location of outlets for pneumatic, electrical or hydraulic outlets with the possibility of their modification, distribution and covering according to customer requirements.
Heating and Square Plates
Heated body panels maximize your comfort during the cold winter season. The square plates hanging system can be used to hang small tools and helps to optimize the storage space of body panels.
Central Lock System
Body panels equipped with a central locking system maximize your comfort. Central lock system can be controlled from cabin or via remote control.
Easy Access to Ad Blue and DPF
Body panels have large service access for maintenance and service of DPF filters and Ad Blue.
Air Drums
Two air circuits with independent air pressure bring air to a distance of up to 15 m from the device and inflate the wheels of the broken car or attach pneumatic tools.
Jump Start
12/24 V electronic jump start system with electronic safety protection of batteries against short circuits.
Central Greasing
Greases all hard-to-reach moving pins of the superstructure.

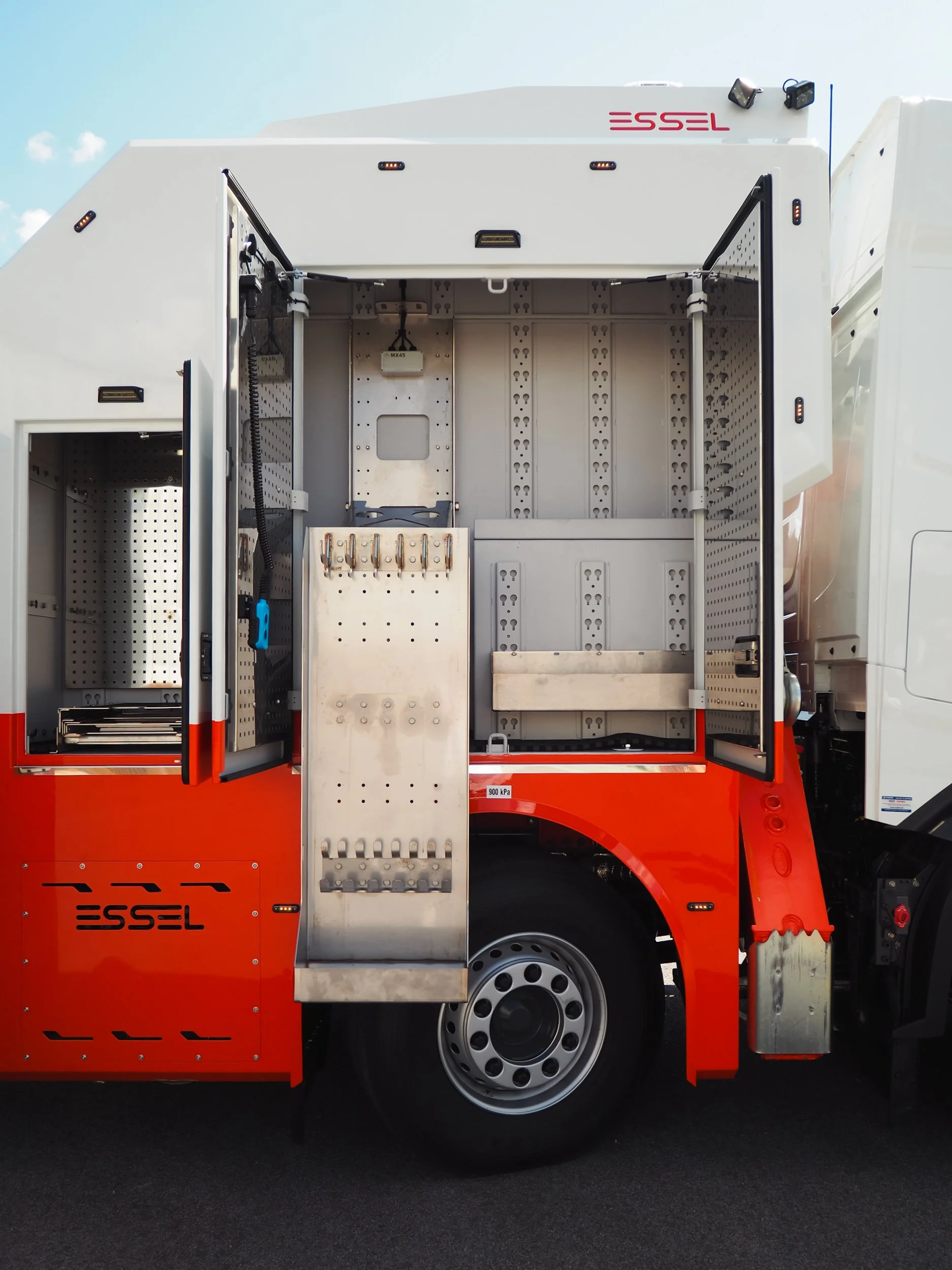

Chain lift
Used for storing chains and other tying tools, the storage space located in the front left compartment maximizes its utilization. The chain lift is smoothly hydraulically operated with the remote control placed in the front door, and it is manufactured from stainless steel.
Chassis
axel 4
wheel base 6m
min. front axle capacity 9t
equipped with power take off (PTO) engine / gear
Subframe
made of high tensile steel
sandblasted, prime and top coated for maximum resistance against corrosion
Front Support Legs
made of high-strength steel
front legs in A shape
weight 1 350 kg
toothed spades for maximum grip
smooth foldable ends
Back Support Legs
back legs in A shape
back angle 15°
side angle 15°
max extension 800mm
made of high tensile steel in rectangular sections
independently and hydraulically operated
toothed spades for maximum grip

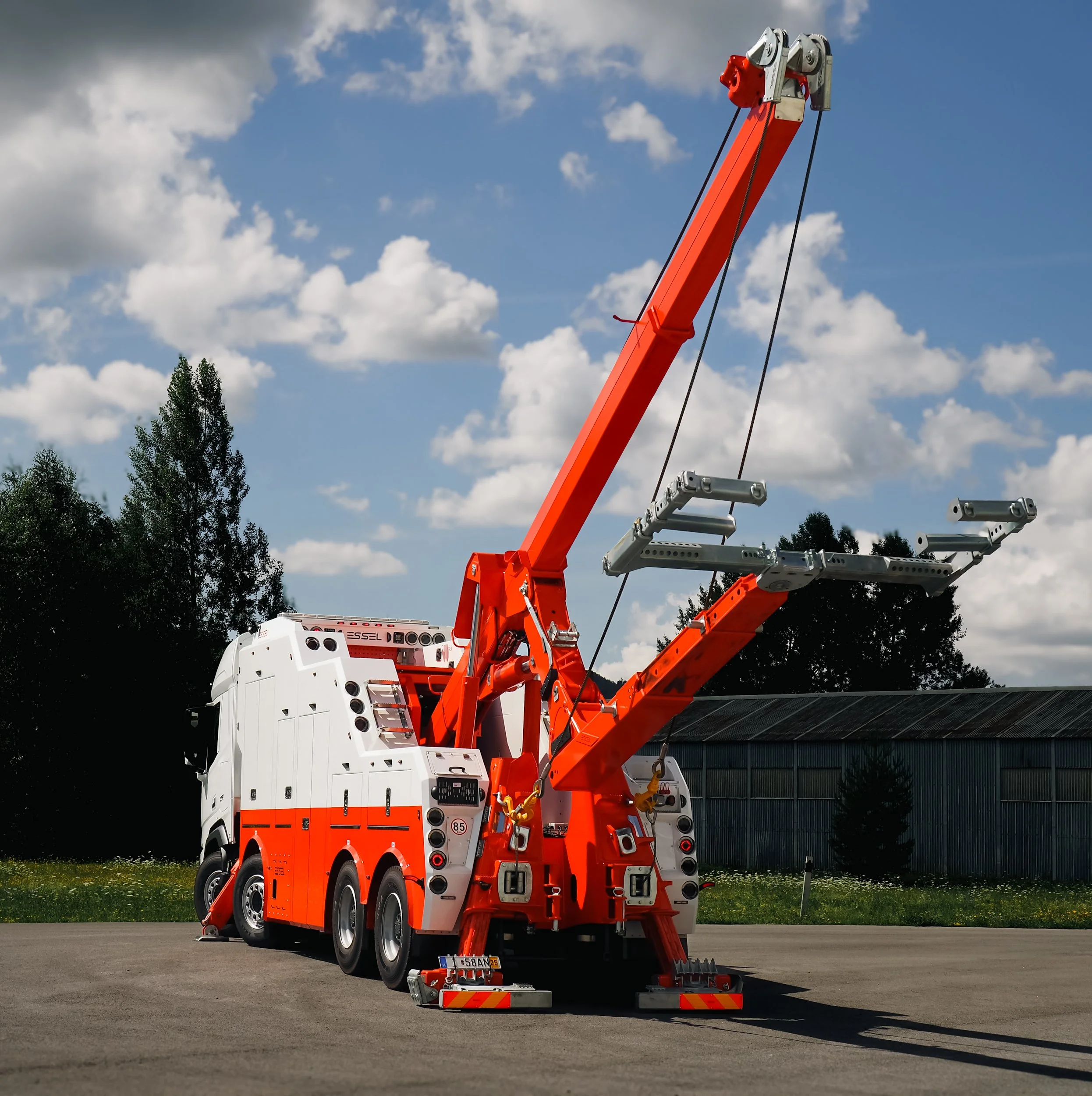

Crane Boom
max. lifting capacity of main crane jib - retracted 25t, extended 10t
dimension of extended main crane jib - length 5,2m,
height approx. 7,8m
max. lifting angle 40°

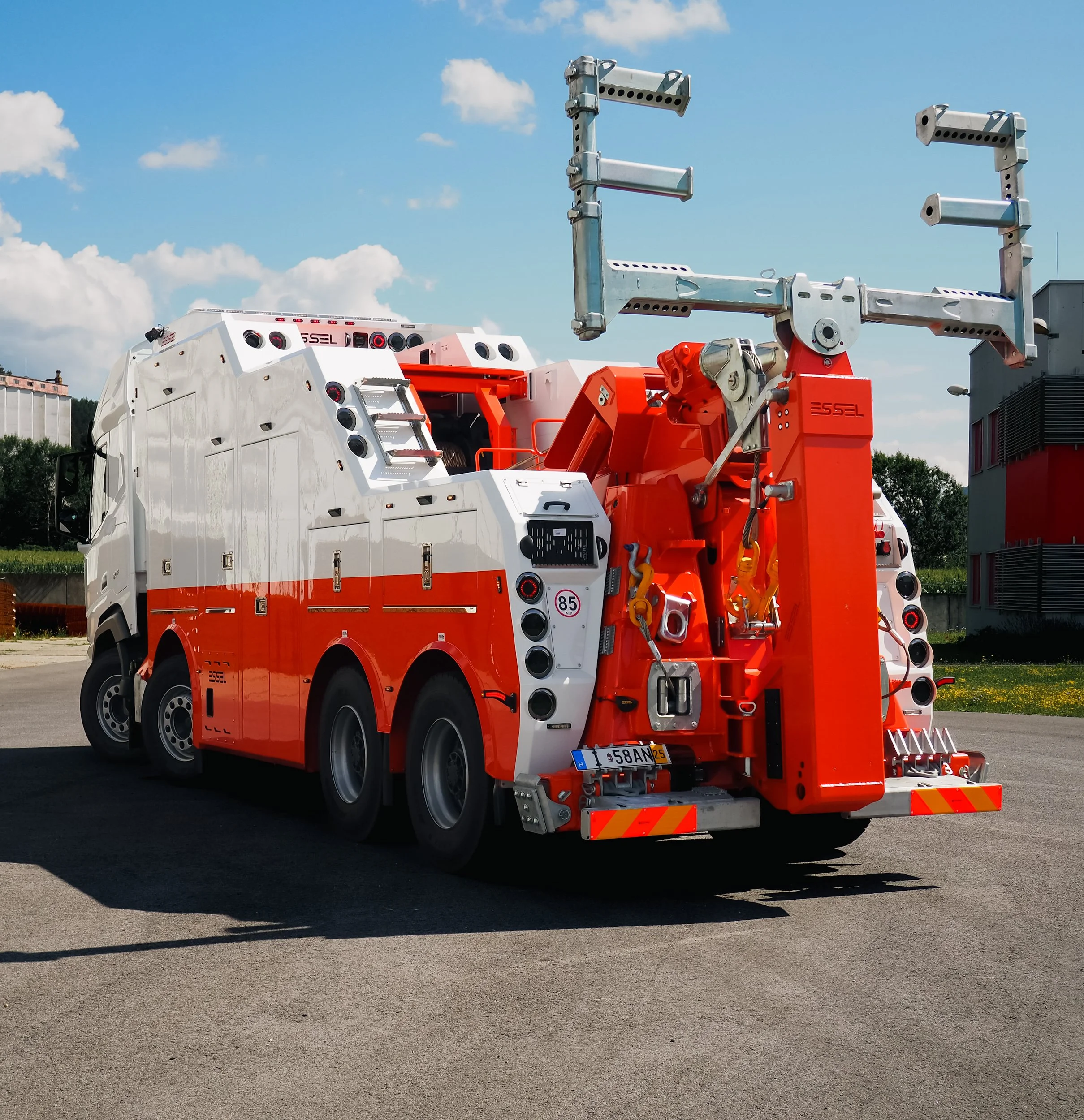

Under-lift
made of high tensile steel plates
fitted with extendable hydraulically operated underlift
underlift supplied with tilting arm with angle +-12°
underlift with 2 telescopic extensions 2x1150mm
manual both-sided aretation of telescopic extensions in different positions
maximal loading capacity of main boom with underlift - retracted 20t, extended 8t
Winches
Sepson Sepdurance H240 2pcs
max. pulling capacity 24t
inner layer 24t
outer layer 15,5t
rope length 60m
rope diameter 24mm
Sepson H125S 2 pcs
max. pulling capacity 12t
Sepson 8t on the FSL-36
Body Panels
made of stainless steel thickness 3mm
hanging brackets
rubber mats thickness 23mm
hot water heating and central lock system
lights turn on automatic by PTO
compartments for hydraulic distributor
compartments with lockable doors with key, with rubber strip sealing
inside hinges made of stainless steel thickness 5mm
adjustable stopper for angle of open doors
easy access to fuel tank and Ad Blue
Hydraulic System
oil tank 120l
hydraulic pump with connection to PTO
working pressure in hydraulic system 20-25MPa
oil flow 50-80l/min
proportional hydraulic distributor 10 + 3 sections
3 independent hydraulic circuits
manual central greasing
hydraulic oil cooler
Electric System
tailor made electrical box - ESSELTRONIC
remote control
working lights on winch, on flyer, by support legs
orange lights on sides of body panels
flashing lights in front 4pcs
flashing lights on flyer 2pcs
light bar on the flyer
combined auto lights on flyer
control of lights from cabin, from the remote control, from the distributor
