ET5000-SUPERLIFT
Versatile platform full of unique solutions
ESSEL Towing
MODEL ET5000 - SUPERLIFT
The premium towing platform with a load-bearing capacity of 5 tons designed for vehicle recovery, transportation, and towing.
It is equipped with a split platform with a folding rear section, which allows for a more favorable approach angle to be able to load vehicles with a low chassis height as well.
Manufactured with a sense for detail. You can rely.
UNDERLIFT WITH A SPECIAL FUNCTION
The underlift of the superstructure commonly allows towing of the towed vehicle and has an additional special function, which is lifting the towing equipment above the platform level. The telescopic extension arm of the towing device can be raised to a height of approximately 2 meters above the road level. At the end of the arm, a special adapter with a directional pulley is attached for guiding the towing cable of the winch located on the platform. This enables the extraction and recovery of a vehicle from gorges, ditches, fjords, and other places with steep descents below the level of the surrounding terrain.

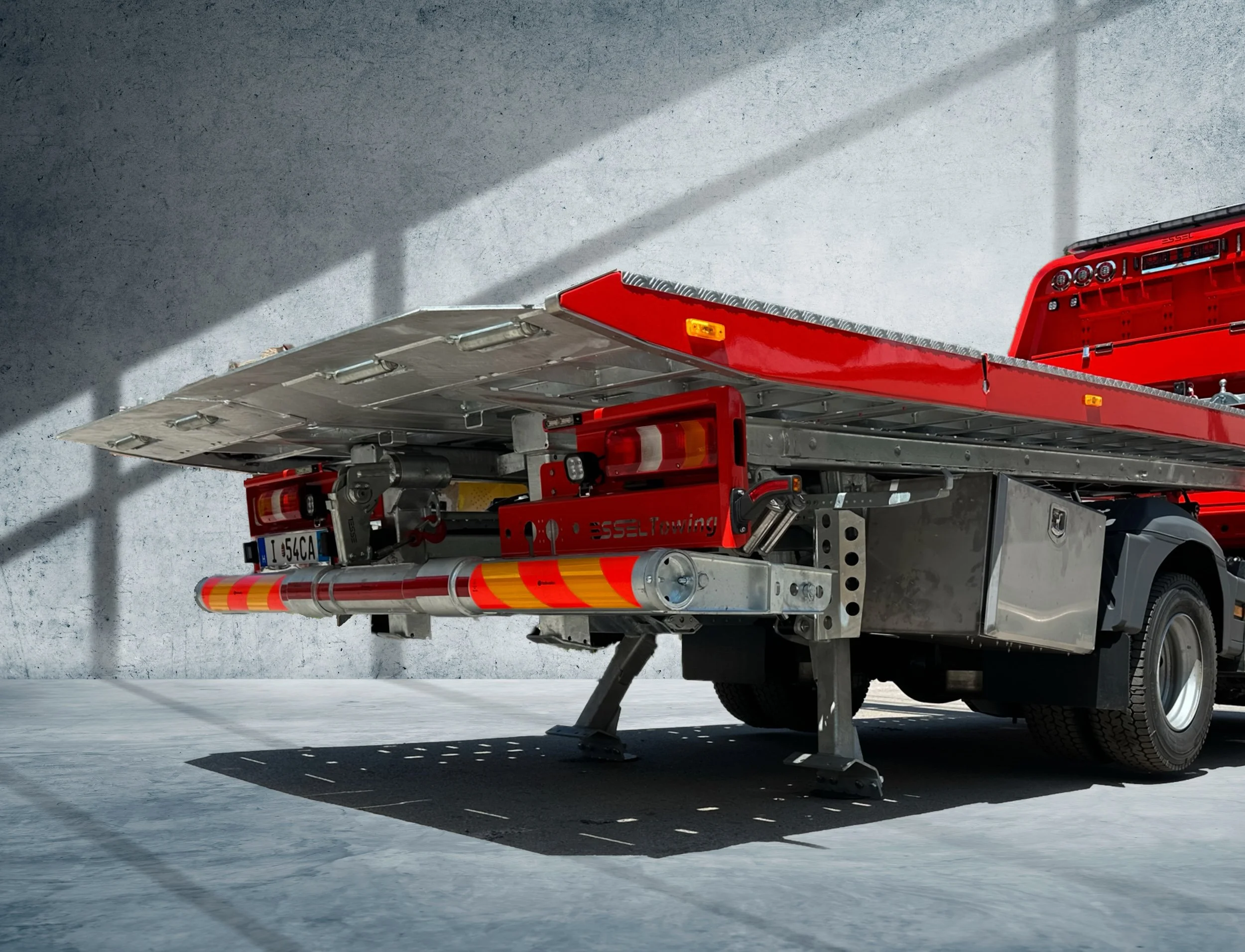

REAR SUPPORT LEGS
The ET5000 SUPERLIFT utilizes rear support legs with specially designed kinematics that stabilize the carrier vehicle during handling of the towed vehicle. In addition to their standard stabilizing function, their rotational movement allows raising the rear axle of the carrier vehicle to a height that enables the installation of snow chains on the wheels even in challenging weather conditions without the need to move the vehicle.
5000kg
Loading capacity of platform
1500kg
Loading capacity of towing device at 1,2 m
3150kg
Weight
Standard equipment
Chassis
Axel 2
Wheel base approx.4,2 m
Equipped with power take off (PTO) engine / gear
Total vehicle weight up to 11,99 t
Wheels 17,5 “
Subframe
Made of high tensile steel
Hot-dip galvanised
Fixed to the truck frame acc. to manufacturer ´s specification
Tilting frame
Made of high-strength steel
Hot-dip galvanized
Tilting mechanism operated by two hydraulic cylinders
Maximum tilt angle: 15°
SCC - Second car carrier
Extendable by 1200 mm
Load capacity at full extension: 1.5 tons
Can be used as a crane arm
Hot-dip galvanized
Platform
Length: 6000 mm
Width: 2450 mm
Folding rear section
Minimum vehicle approach angle: 7°
Hot-dip galvanized
Anti-slip surface
Mounting holes along the entire platform
Wheel chocks
4 loading rollers
Hydraulic displacement of the winch: 860 mm
Flyer
High flyer
Full front wall
Equipped with accessory hooks
Tool storage compartment
Winches
On the platform:
VIME EPH 3600, rope diameter 10 mm, rope length 30 m
Underneath the platform with a directional pulley at the back:
VIME EPH 3600, rope diameter 10 mm, rope length 30 m
Hydraulic system
Oil tank, geometric volume of 80 liters
Working volume of the hydraulic fluid: 60 liters
Working pressure in the hydraulic system: 18 MPa
Oil flow rate of 25 liters per minute at an engine speed of 650 RPM
Distributor 9 sections, with custom made hoses located in the illuminated stainless steel box
Electric system
Custom-made electrical box: ESSELTRONIC
Remote radio control
8 working lights
Orange outline lights on the side of the platform and the vehicle
4 strobe lights at the front, 2 on the beacon bar, 2 at the rear
Light bar on the vehicle cabin and the beacon bar
Combination lights on the beacon bar
Light control from the vehicle cabin and the remote control
Accessories
Two stainless steel toolboxes
Broom and shovel holder
ISO50 3.5-ton towing ball
Directional pulley on SCC (allows for recovery from ditches)
Rear directional pulley
Side directional pulley on the platform
Snow chain holder
Compressed air hose winch located in a box
…
